aluminum plate, carbon steel plate, stainless steel plate, galvanized plate, yellow copper plate

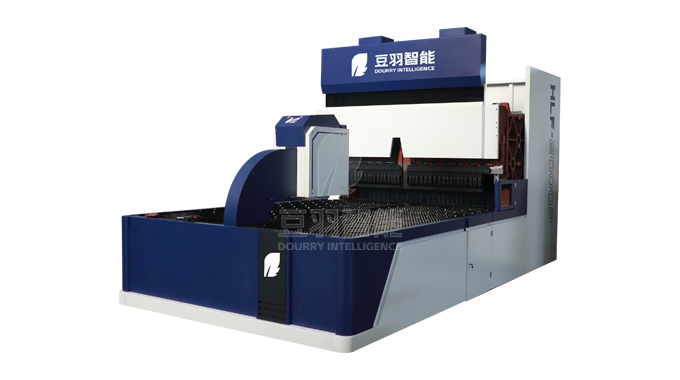

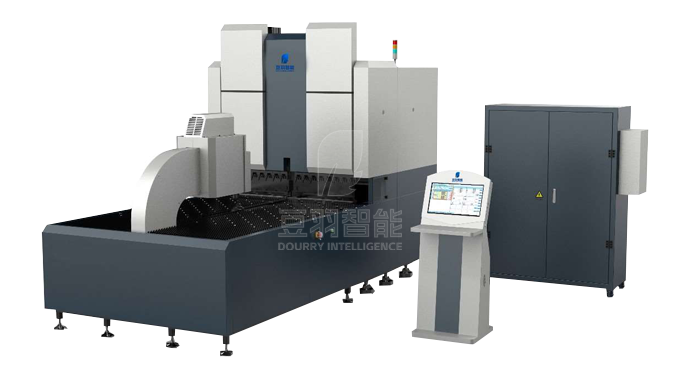

Get PriceThe intelligent bending center is a high-efficiency automated machine tool composed of mechanical equipment and a CNC system used to perform complex bending and forming of multiple edges of thin plates. After the machine tool uses a universal universal mold to clamp the thin plate, it uses the movement of the bending knife to achieve right angle bending, arc bending and other processes. With automatic feeding and workpiece rotation, it can automatically complete multiple sheet metal processes in one clamping.
Applicable materials: cold rolled plate, standard plate, stainless steel
Material width: 1250mm/1500mm
Inner diameter of coil: φ480-530mm
Coil outer diameter: φ1320 mm
Weight Capacoty: ≤10t, ≤15t
It adopts 17 pieces rollers driven by servo motor and gear box.
No. of rollers: 17 pieces 8 upper rollers and 9 down rollers
Material of rollers: Alloy steel with quenched and tempered processing and hard chromium plating
Leveling accuracy: ≤1.5mm/㎡
| Model | DB1500 | DB2200 | DB2500 | DB3000 | |
|---|---|---|---|---|---|
| Materialleneth (min to max.) | 200-1500mm | 200-2200mm | 200-2500mm | 200-3000mm | |
| Material width (min.to max.) | 200-1000mm | 200-1000mm | 200-1500mm | 200-1500mm | |
| Maximum diagonal size | 1650mm | 2350mm | 2650mm | 3250mm | |
| Maximum bendingheight | 170mm | 170mm | 170mm | 170mm | |
| Maximum bending speed(s/knife) | 0.3s/c | 0.3s/c | 0.3s/c | 0.3s/c | |
| Number of axes | 14 | 14 | 21 | 21 | |
| Work surfaceheight | 850mm | 850mm | 850mm | 850mm | |
| Folding angle range | -135-135° | -135-135° | -135-135° | -135-135° | |
| Conventional bending plate thickness | Cold plate 410N/mm² | 0.5-1.5mm | 0.5-1.5mm | 0.5-2.0mm | 0.5-2.0mm |
| 304 stainless steel 660 N/mm | 0.5-0.8mm | 0.5-0.8mm | 0.5-1.2mm | 0.5-1.2mm | |
| 201 stainless steel 1000 N/mm | 0.5-0.8mm | 0.5-0.8mm | 0.5-1.2mm | 0.5-1.2mm | |
| aluminum plste 260 N/mm | 0.5-2.0mm | 0.5-2.0mm | 0.5-2.5mm | 0.5-2.5mm | |
| Minimum height of bendingplate | 5 times the plate thickness | ||||
| Power supply capacity, three-phase four wire 380v | 70kVA | 70kVA | 70kVA | 70kVA | |
| Air pressure | ≥0.6MPa | ||||
| Wachine Dimensions | 3070*4250*2200mm | 3700*5000*2200mm | 3800*5000*2200mm | 4500*5000*2200mm | |
| Machine weight | 11t | 15t | 20t | 24t | |
