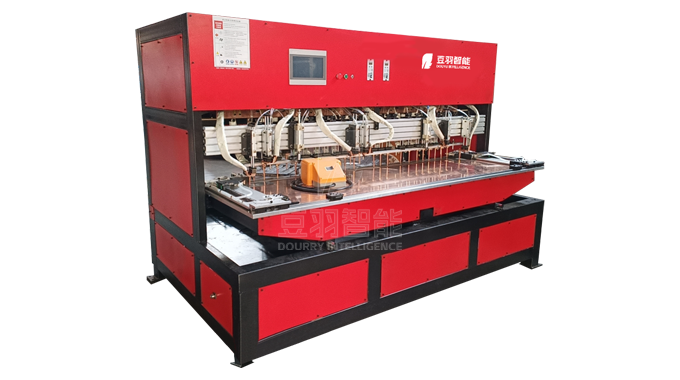

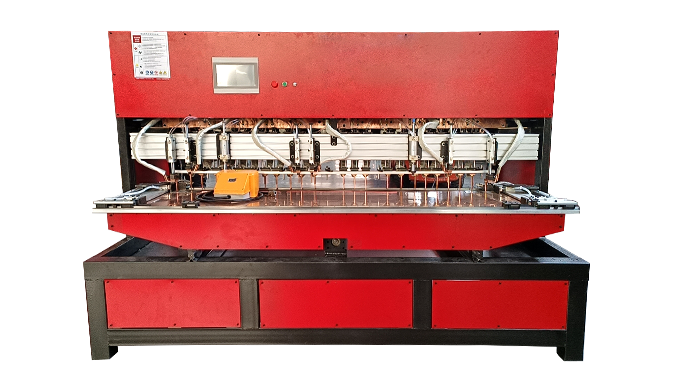

Get PriceThe principle of the CNC Multi-point welding machine is the same as that of the spot welding machine. The parts to be welded are pressed tightly between the two electrodes, and then the current is released instantaneously. The electric current flows through the contact surface to be welded and the relatively close area to instantly generate Resistance heat is a welding method that heats parts to a molten state to bond metals.The CNC multi-point welding machine is suitable for sheet metal processing and manufacturing, and the welding process of plates below 2mm. Widely used in filing cabinets, tool cabinets, electrical cabinets, elevators and other industries.
| Model | DW2000 | System | Self development |
|---|---|---|---|
| Power | ≈75kW | Input voltage | AC380V+-5% |
| Working range | Conventional welding of door panels/partitions/etc. | Equipment size l*w*h | 32341*1770*1780 |
| Welding thickness | 0.1mm--1.5mm (conventional type) | Welding size l*w*h | 2000*800*50 |
| Welding speed | 8-10 Pieces/minute (partition) | Welding accuracy | +-0.25mm |
